Aluminum DC Adapter 100W - 300W
Desciption:
This Switch power supply convert AC to DC, widely used in the power adapter, Led lights strip, LED display, billboard, industrial equipment, etc.
Switch power supply, convert AC 100-240V to DC12V or DC24V.
Wide input voltage range, steady and precise output voltage.
Shortage protection, overload protection(105%~200%), over voltage protection(115%~135%).
Widely used as the power adapter for Led strip, LED display, billboard, industrial equipment, etc.
Details:

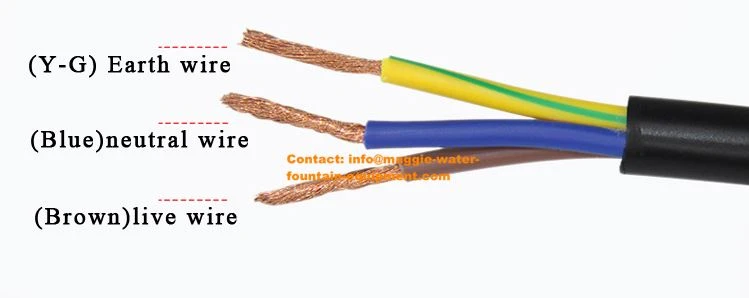

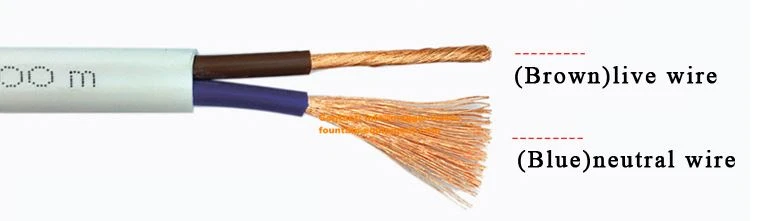

Wiring connection:
| Input | AC Voltage: | 100-240V |
| Frequency | 50/60Hz | |
| Output | DC Voltage | 12V / 24V |
| Rated power | 100W - 300W | |
| Current range | 3A±1% | |
| Protection | Overload | 100% overloading |
| Short circuit | Auto recovery | |
| Over voltage | ≤255V | |
| Over temperature | ≤80°C | |
| Others | Waterproof rate | IP67 |
| Cooling | by convection | |
| Efficiency | >80% | |
| Housing materials | Aluminum | |
| Dimension(mm) | 220X65X42 MM | |
| Weight | 0.56kgs |
| WATERPROOF ip67 | PRODUCT MODEL | OUTPUT |
MM |
CM | PCS/CTN | G/PCS N.W (G) | KG/CTN G.W(KG) |
| 12V100W IP67 | 100W | 175*70*40 | 42.5*23*17 | 15 | 900 | 21.00 |
24V100W IP67 | 100W | 175*70*40 | 42.5*23*17 | 15 | 900 | 21.00 |
12V120W IP67 | 120W | 180*70*40 | 42.5*23*17 | 15 | 900 | 16.50 |
24V120W IP67 | 120W | 180*70*40 | 42.5*23*17 | 15 | 900 | 16.50 |
12V150W IP67 | 150W | 200*70*40 | 45.5*24.8*17 | 15 | 1000 | 19.00 |
24V150W IP67 | 150W | 200*70*40 | 45.5*24.8*17 | 15 | 1000 | 19.00 |
12V200W IP67 | 200W | 206*125*45 | 40.2*26*15.5 | 5 | 2100 | 13.00 |
24V200W IP67 | 200W | 206*125*45 | 40.2*26*15.5 | 5 | 2100 | 13.00 |
12V/250W IP67 | 250W | 206*125*45 | 40.2*26*15.5 | 5 | 2250 | 13.00 |
24V/250W IP67 | 250W | 206*125*45 | 40.2*26*15.5 | 5 | 2250 | 13.50 |
12V/300W IP67 | 300W | 260*120*50 | 38.5*29*17 | 5 | 2500 | 13.50 |
24V/300W IP67 | 300W | 260*120*50 | 38.5*29*17 | 5 | 2500 | 13.50 |
